Conductive Heat Transfer

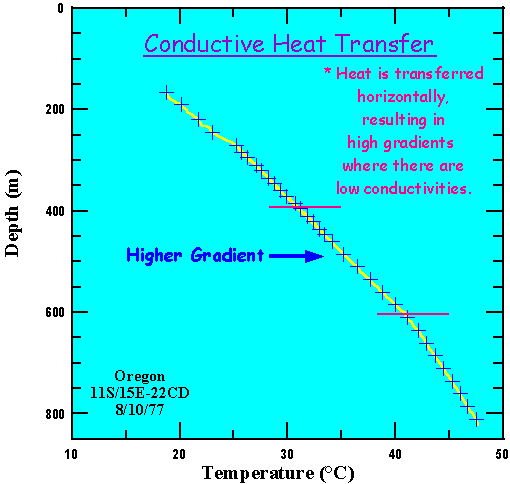

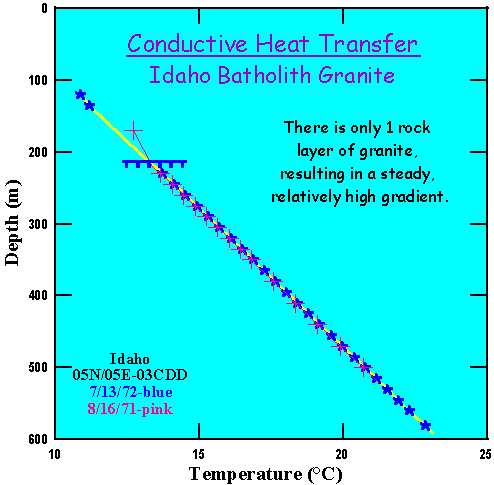

This is the basic example of the Earth's temperature increasing consistently with depth.  The ability to transfer heat from one substance to another is referred to as its thermal conductance.  When heat transfers conductively in a homogenous or horizontally layered media the temperature-depth curve is a straight line with little to no change in gradient for then entire length of the curve.

'
